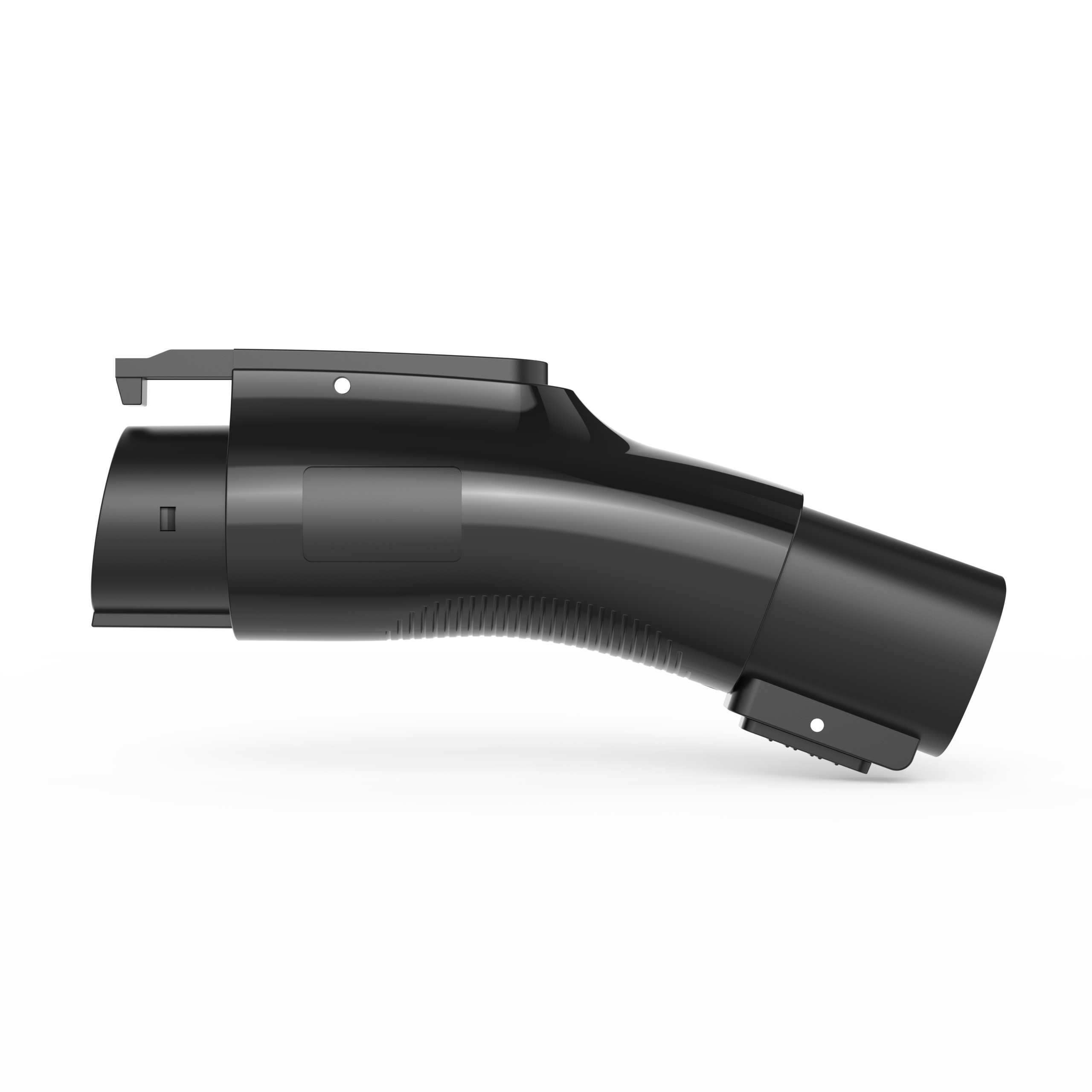

NACS to J1772 AC Adapter 50A/80A

NACS to J1772 AC Adapter (NOT SCREEN)

A high-current NACS to J1772 AC adapter designed for J1772-equipped electric vehicles to connect with compatible NACS AC charging equipment. Available in 50A and 80A versions, with IP66 protection and OEM/ODM customization for distributors and EV charging brands.

Request Quote OEM / ODM B2B Inquiry

NACS to J1772 AC Adapter (NOT SCREEN)

Ordering

Quote-led B2B inquiry

OEM / ODM

Available on request

Rated Current

50A, 80A Max

Rated Voltage

240V AC

Input Connector

NACS

Output Connector

SAE J1772 / Type 1

Charging Type

AC Charging Only

The IcekiLink NACS to J1772 AC Adapter allows electric vehicles equipped with a SAE J1772 / Type 1 charging inlet to connect to compatible NACS AC charging equipment.

Available in 50A and 80A versions, this adapter supports up to 240V AC for residential, destination and commercial AC charging applications. Actual charging current and charging speed depend on the selected adapter version, charging station output and the vehicle’s onboard charging capability.

The adapter features H62 brass conductors with 2 μm silver plating for stable electrical conductivity. Its thermoplastic housing provides an UL94 V-0 flame-retardant rating, while the IP66 protection rating helps protect the product against dust and water.

Designed for EV charging equipment distributors, automotive accessory wholesalers and private-label brands, IcekiLink provides OEM and ODM services including custom logo, packaging, labeling and product appearance.

This product is designed for AC charging only and does not support DC fast charging.
